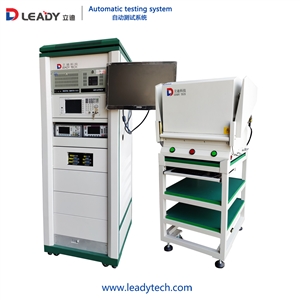

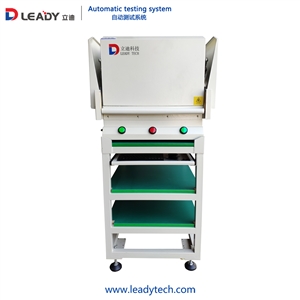

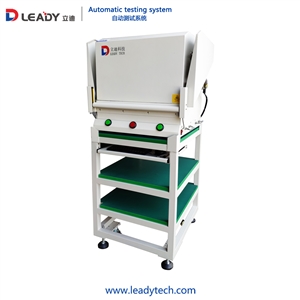

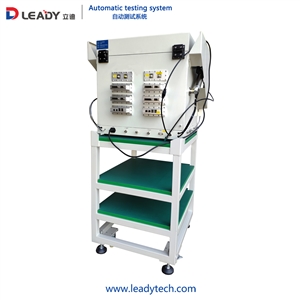

Test fixture to the use of cylinder automatic pressing, convenient access to the product to be tested, the test interface display test process, test results, Ichiban number of defective products, the total number of test data and qualified rate parameters, product pass, fail, respectively by the green and red icon display, convenient for operating personnel to judge. All testing data system will automatically in accordance with the day, week and year to establish different files saved to the hard disk of the computer or transmitted to the specified server, convenient personnel on the test data of the corresponding statistical, analysis. The replacement fixture only need to disconnect the connector into the new fixture existing fixture.
?
系統軟件特點：
?
?
1. Test the hardware equipment of the system mainly in the computer industry, DIO card, AC power supply, DC supply, oscilloscope, tachometer, multimeter and for customized products FCT test fixture, etc..
2.系統軟件通過GPIB/RS232來控制外圍設備的電壓電流設定和數據讀取；
2. System software through the GPIB/RS232 to control the external device voltage and current setting and data read.
3.不同系列的產品有相應的測試治具；
3. Different series of products with the corresponding test fixture.
4.支持不同型號產品之間的切換；
4. Support for different types of products to switch between test.
5.測試的所有數據（包括良品和不良品）系統均會自動按天、周、年建立不同的檔案存入計算機硬盤中或傳送至指定服務器，相關人員可對測試數據進行相應的統計分析；
5. All data system (including the good products and defective products) will automatically according to the day, week and year to establish different files stored in the computer hard disk or sent to the specified server and related personnel can be the corresponding statistical analysis to the test data.
6.操作員操作簡單，PASS的產品電腦顯示綠色圖標，F(xiàn)AIL的產品電腦顯示紅色圖標；
6. Operator operation is simple, PASS products are displayed on the green icon, FAIL's products show the red icon;
7.設置用戶管理權限，采用密碼進行管控。
7. Set user management authority, the use of password control.
Specification:
?????Test interface: simple, easy to operate.
?????Test items : edited.
?????Test SPEC: edited.
?????System: Supports automatic and single step test .
?????System :? program supports to run or stop .
?????Test data: OEM (.Csv,.Txt, etc.).
?????Support: test data statistics.
?????Support: SN input and SN length .
?????Supports: all test data to save.
,
